| FLJ-WL铝叶涡流离心风机 FLJ-WS塑料涡流离心风机 FLJ-WT金属涡流离心风机 |
|
◎175FLJ-WT
◎190FLJ-WT
◎225FLJ-WT
◎250FLJ-WT
◎280FLJ-WT
|
|
涡流离心风机
280FLJ-WT
型号
Type |
电压
Voltage
V |
相数
Phase |
频率
Fre-quency
Hz |
输入电流
Input Current
A |
输入功率
Input Power
W |
转速
Speed
r/min |
风量
Air Volume
m3/min |
静压
Static Pressure
Pa |
噪音
Noise
dB(A) |
电容
Capa-citance
µF/V |
重量
Weight
kg |
接线图
Diagram |
| 280FLJ2-2WT |
220 |
1 |
50 |
1.08 |
200 |
2300 |
30 |
540 |
75 |
5.0/500 |
3.0 |
A |
| 280FLJ3-2WT |
380 |
3 |
50 |
0.65 |
200 |
2370 |
30 |
540 |
75 |
/ |
3.0 |
C |
| 280FLJ6-2WT |
220 |
1 |
50 |
0.95 |
230 |
1700 |
32 |
640 |
65 |
3.3/500 |
3.3 |
A |
| 280FLJ7-2WT |
380 |
3 |
50 |
0.55 |
230 |
1700 |
32 |
640 |
65 |
/ |
3.3 |
C |
280FLJ2-4WT |
220 |
1 |
50 |
0.30 |
80 |
1300 |
18 |
200 |
60 |
2.5/500 |
3.0 |
A |
| 280FLJ3-4WT |
380 |
3 |
50 |
0.15 |
70 |
1300 |
18 |
200 |
60 |
/ |
3.0 |
C |
| 280FLJ6-4WT |
220 |
1 |
50 |
0.35 |
90 |
1360 |
21 |
200 |
62 |
2.5/500 |
3.3 |
A |
| 280FLJ7-4WT |
380 |
3 |
50 |
0.20 |
90 |
1360 |
21 |
200 |
62 |
/ |
3.3 |
C |
|
|
|
| |

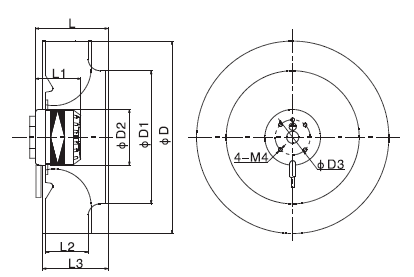

| 外形及安装尺寸 |

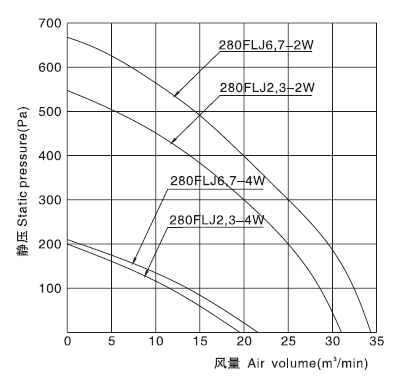

风量静压曲线 |
 |
 |

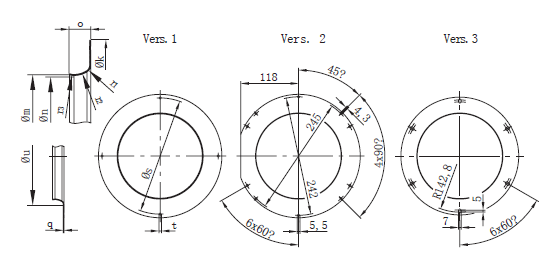

| 导流圈 |
 |
| Part no. |
Size (1) |
Vers. |
k |
m |
n |
o |
q |
r1 |
r2 |
r3 |
s |
t |
u |
| 133 |
133(P) |
1 |
129.0 |
87.0 |
- |
13 |
0.6 |
8 |
- |
- |
118.0 |
4x4.5 |
103.0 |
| 175/180/190 |
175/190(P) |
1 |
170.0 |
125.5 |
- |
14 |
0.6 |
10 |
|
|
158 |
4x4.5 |
146.0 |
| 220 |
220(P) |
2 |
252.0 |
155.0 |
- |
21 |
0.8 |
22 |
- |
- |
246 |
4x4.5 |
199.0 |
| 225 |
225(P) |
1 |
223.0 |
146.0 |
- |
28 |
1.5 |
25 |
- |
- |
210 |
4x4.5 |
196.0 |
| 250 |
250(P/S) |
1 |
255.0 |
164.5 |
- |
31 |
1.5 |
28 |
- |
- |
240 |
4x4.5 |
221.0 |
| 280 |
280(S) |
1 |
280.0 |
182.5 |
- |
35 |
1.5 |
31 |
- |
- |
260 |
4x4.5 |
245.0 |
| 310 |
310(P) |
3 |
300.0 |
192.0 |
- |
53 |
1.00 |
30 |
60 |
- |
- |
- |
257.0 |
| 310 |
310(A) |
1 |
300.0 |
211.0 |
208.1 |
48 |
1.25 |
18 |
55.5 |
35 |
280 |
4x4.5 |
256.0 |
| 310 |
310(2)(A) |
1 |
300.0 |
211.0 |
209.2 |
27.5 |
1.25 |
10 |
32 |
20 |
280 |
4x4.5 |
236.0 |
| 355 |
355(P) |
1 |
350.0 |
224.0 |
- |
60 |
1.5 |
54 |
28 |
- |
325 |
4x4.5 |
284.0 |
| 355 |
355(A) |
1 |
350.0 |
240.0 |
236.4 |
60 |
1.5 |
22.5 |
70 |
44 |
325 |
4x4.5 |
296.0 |
| 355 |
355(2)(A) |
1 |
350.0 |
240 |
238 |
30 |
1.5 |
11 |
35 |
22 |
325 |
4x4.5 |
267.0 |
| 400 |
400(A) |
1 |
370.0 |
257 |
- |
66 |
1.5 |
22 |
50 |
90 |
345 |
4x4.5 |
322.0 |
| 450 |
450(A) |
1 |
413.0 |
287 |
- |
71 |
1.5 |
25 |
55 |
100 |
390 |
6x9 |
362.0 |
| 450 |
450(A) |
1 |
450.0 |
289 |
284.5 |
75 |
1.5 |
28 |
87 |
49 |
425 |
6x9 |
360.0 |
| 500 |
500(A) |
1 |
520.0 |
323 |
- |
79 |
1.5 |
28 |
65 |
115 |
430 |
6x9 |
408.0 |
| 500 |
500(A) |
1 |
470.0 |
342 |
337 |
75 |
2 |
28 |
87 |
55 |
445 |
6x9 |
412.0 |
| 560 |
560(A) |
1 |
515.0 |
385 |
380 |
82 |
2 |
30 |
95 |
75 |
490 |
6x9 |
461.0 |
| 630 |
630(A) |
1 |
634.0 |
433 |
427 |
98.5 |
2.00 |
37 |
14 |
72 |
600 |
60x10.5 |
525.0 |
|
| |
|
|
